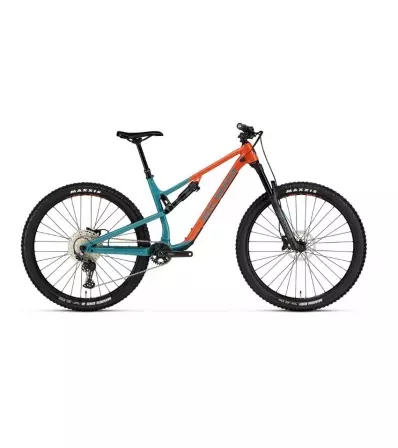

Trail Bike Rocky Mountain Instinct Alloy 30 2023
Basecamp Shop - Authorized Rocky Mountain Dealer
If you’re looking for one bike that does it all, look no further than the Instinct. We’ve designed a bike that’s capable of tackling technical trail riding but still allows you to push the pedals hard on the climbs. We’ve updated the geometry, frame features, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
Basecamp Shop - Authorized Rocky Mountain Dealer
If you’re looking for one bike that does it all, look no further than the Instinct. We’ve designed a bike that’s capable of tackling technical trail riding but still allows you to push the pedals hard on the climbs. We’ve updated the geometry, frame features, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Trust your Instinct.
SKU: B0221-2023
Frame: FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry. 2 Position Axle. 140mm Travel. FORM™ Alloy Rear Triangle
Fork: RockShox 35 Gold RL 150mm | 27.5 = 37mm Offset | 29 = 42mm Offset
Front Travel: 150mm
Shock: RockShox Deluxe Select R | Sealed Bearing Eyelet | 25x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
Rear Travel: 140mm
Headset: FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem: Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m
Handlebar: Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips: ODI Elite Pro Lock On
Brakes: Shimano MT4120 4 Piston | Resin Pads
Shifters: Shimano Deore 12spd
Rear Derailleur: Shimano Deore 12spd
Cranks & Chainring: Shimano Deore | 32T | 24mm Spindle | 170mm Crank Length
Bottom Bracket: FSA BB92 24mm
Cassette: Shimano Deore 10-51T 12spd
Chain: Shimano M6100
Front Hub: Shimano MT410 | 15mm Boost
Rear Hub: Shimano MT410 Boost 148mm
Spokes: 2.0 Stainless
Rims: WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape and Valves Incl
Tires: F - Maxxis Minion DHF 2.5 WT EXO Tubeless Ready | R - Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready
Seatpost: Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
Saddle: WTB Volt 142
Detailed description
Frame: FORM™ Alloy. Full Sealed Cartridge Bearings. Press Fit BB. Internal Cable Routing. 2-Bolt ISCG05 Tabs. RIDE-9™ Adjustable Geometry. 2 Position Axle. 140mm Travel. FORM™ Alloy Rear Triangle
Fork: RockShox 35 Gold RL 150mm | 27.5 = 37mm Offset | 29 = 42mm Offset
Front Travel: 150mm
Shock: RockShox Deluxe Select R | Sealed Bearing Eyelet | 25x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
Rear Travel: 140mm
Headset: FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race
Stem: Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40m
Handlebar: Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips: ODI Elite Pro Lock On
Brakes: Shimano MT4120 4 Piston | Resin Pads
Shifters: Shimano Deore 12spd
Rear Derailleur: Shimano Deore 12spd
Cranks & Chainring: Shimano Deore | 32T | 24mm Spindle | 170mm Crank Length
Bottom Bracket: FSA BB92 24mm
Cassette: Shimano Deore 10-51T 12spd
Chain: Shimano M6100
Front Hub: Shimano MT410 | 15mm Boost
Rear Hub: Shimano MT410 Boost 148mm
Spokes: 2.0 Stainless
Rims: WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape and Valves Incl
Tires: F - Maxxis Minion DHF 2.5 WT EXO Tubeless Ready | R - Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready
Seatpost: Rocky Mountain Toonie Drop Composite 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
Saddle: WTB Volt 142
